Michelangelo AI Serving

Michelangelo AI provides a unified way to deploy and serve ML models on Kubernetes. This guide covers the architecture, controller lifecycles, and core concepts that operators and contributors should understand.

What Is Michelangelo AI Serving?

Michelangelo AI Serving is a control plane for managing ML model serving infrastructure. It handles the complete lifecycle of inference servers and model deployments, from provisioning to traffic routing to cleanup.

Users define what to deploy, and Michelangelo AI handles:

• Provisioning inference server infrastructure (Deployments, Services)
• Managing model configurations
• Routing traffic to the correct models
• Health monitoring and status reporting
• Automatic cleanup on deletion

Architecture

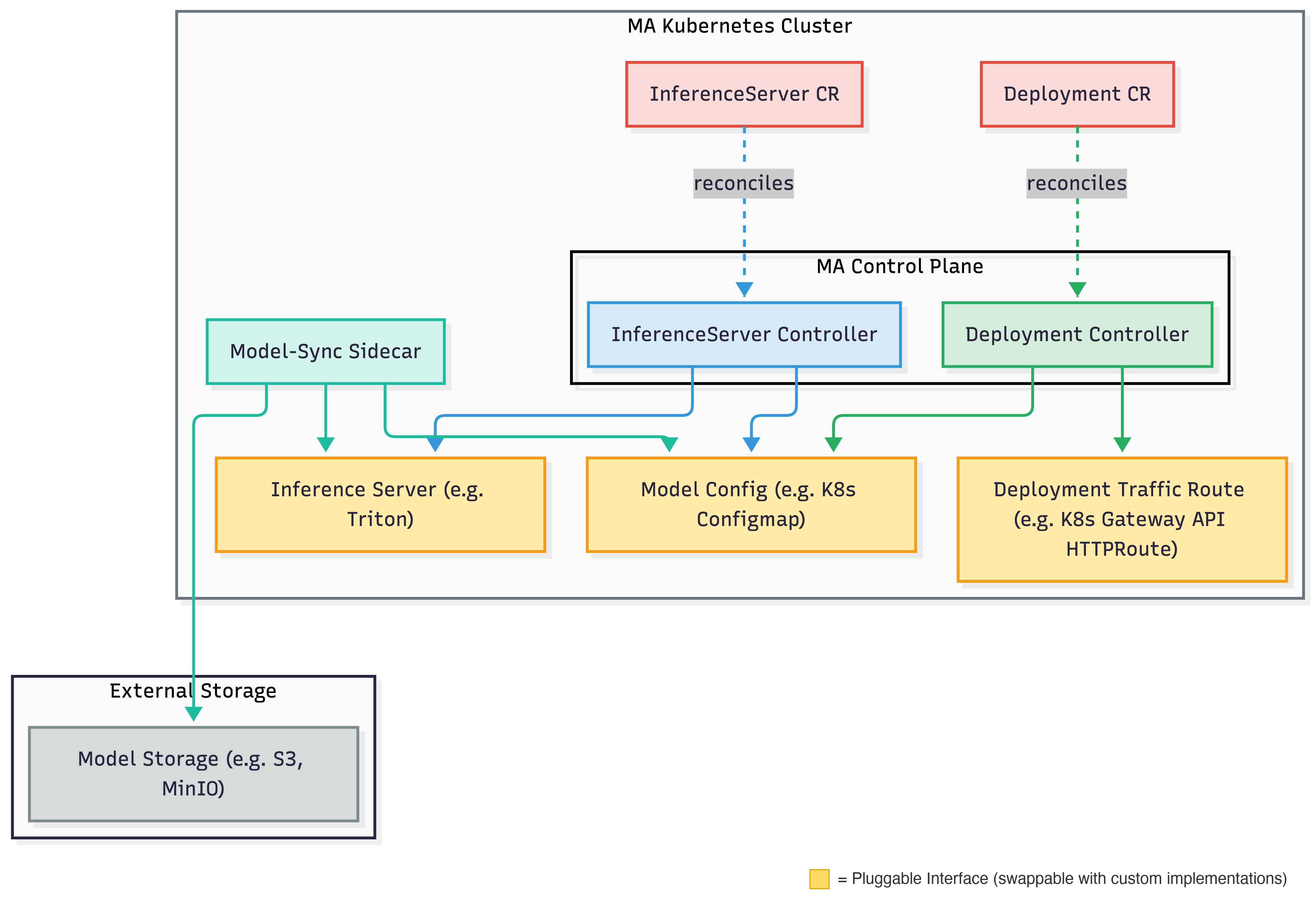

The image below displays the Michelangelo AI (MA) architecture for deploying and running inference on a model.

The system uses a sidecar approach for model management: a model-sync sidecar daemon watches the model configuration and handles the actual loading and unloading of models on the inference server.

How Serving Works

InferenceServer Lifecycle

The InferenceServer controller manages the infrastructure that serves models:

1. Create User submits an InferenceServer resource.
2. Provision Michelangelo AI provisions the inference server infrastructure.
3. Health Check The system monitors deployment readiness and server health.
4. Serve Once healthy, the server is ready to load models.
5. Delete On deletion, all resources are cleaned up.

Deployment Lifecycle

The Deployment controller manages model rollouts to inference servers. A rollout is a progressive, cluster-by-cluster operation: the new model has to be loaded and verified on every replica of a cluster before that cluster's traffic is switched, and a cluster has to be serving the new model healthily before the next cluster starts.

1. Validation Michelangelo AI validates the model and target server.
2. Asset Preparation Model artifacts are staged for loading.
3. Placement The set of target clusters is snapshotted so the rest of the rollout works on a stable list.
4. Per-cluster rollout (repeated for each target cluster, in order)
   1. Canary: the model is loaded on a single replica and must report READY there.
   2. Rolling load: every replica of the cluster loads the model; the controller reads each replica's load state back from the serving framework and waits until all of them are READY. A replica that fails the load, or a load that exceeds its budget, fails the rollout.
   3. Traffic switch: the model becomes a readiness requirement for the replicas, all replicas are re-verified, and only then is the cluster's route flipped to the new model.
   4. Soak: the cluster serves the new model for a configurable period while the health and metric gates keep watching it.
5. Discovery Routing The model is exposed on the control-plane discovery route.
6. Cleanup The previous model is removed from every cluster's Model Config.
7. Completion The model is fully deployed and serving.

Rollout Stages

Each step is a condition on the Deployment status. Per-cluster conditions carry the cluster ID as a suffix (RollingRolloutComplete-compute-1).

Condition	What must be true before the next step
Validated	Model and server configuration verified
AssetsPrepared	Model artifacts staged
PlacementPrepared	Target cluster snapshot recorded
CanaryRolloutComplete-<cluster>	Model READY on one running replica (Model Config phase canary)
RollingRolloutComplete-<cluster>	Model READY on every replica (phase staged), within deployment.rollout.modelLoadTimeout
TrafficRoutingConfigured-<cluster>	Entry promoted to phase serving, every replica re-verified, route flipped
SoakComplete-<cluster>	Cluster served the model for deployment.rollout.soakPeriod with the gates passing
DiscoveryRoutingConfigured	Discovery route configured
ModelCleanupComplete-<cluster>	Previous model removed from the cluster's Model Config
RolloutComplete	Model is live

Health Gates and Rollback

While a rollout is in progress the controller evaluates a health gate on every reconcile. The gate fails when a model this Deployment is serving (a serving entry in the model config) is not loaded on every replica in any target cluster, or when a configured Prometheus metric gate is breached for the candidate model (by default, Triton's inference failure ratio over the last five minutes). Only the Deployment's own models are judged, so another Deployment's model that is still loading on the same inference server does not roll this Deployment back. The reason for the last failed gate is recorded on the Deployment in the deployment.michelangelo.ai/health-gate-reason annotation.

A rollback starts when the gate fails, when the desired model changes mid-rollout, or when the rollout itself fails (a replica cannot load the model, or a load or canary exceeds its budget). Rollback is also per cluster:

Condition	Description
RollbackComplete-<cluster>	Previous model re-added as serving if needed and confirmed READY on every replica, route restored to it, candidate entry removed. With no previous model the route is removed instead.
RollbackComplete	Discovery route reconciled; the Deployment reports Rollback Complete

Once a rollback has started it runs to completion even if the gate recovers, so a transiently healthy signal cannot resume a rollout that was already being undone.

Rollout Configuration

The knobs live in the controller manager config (go/cmd/controllermgr/config/base.yaml):

Key	Default	Purpose
deployment.rollout.skipCanary	false	Skip the single-replica canary step
deployment.rollout.modelLoadTimeout	15m	Budget for a cluster to load the model on every replica
deployment.rollout.soakPeriod	0	Time a cluster serves the new model before the next cluster starts. A Zonal strategy's rolloutPeriodInSeconds overrides it
deployment.rollback.modelLoadTimeout	15m	Budget for the previous model to be READY again during a rollback
deployment.metricGate.prometheusURL	unset	Enables the metric gate when set
deployment.metricGate.queries	Triton failure ratio > 5%	PromQL templates ({{.Model}}, {{.Deployment}}, {{.Namespace}}, {{.InferenceServer}}) with a threshold and comparison
deployment.metricGate.failClosed	false	Treat an unanswerable query as a breach
inferenceServer.triton.readinessProbe	model-aware	model-aware requires every serving model to be loaded before a replica is ready; server uses Triton's server readiness; none disables the probe
inferenceServer.triton.probes.{startup,liveness,readiness}.{periodSeconds,timeoutSeconds,failureThreshold}	built-in per probe	Overrides the Triton pod probe timing; zero keeps the built-in value. Changing a value restarts running Triton pods once
inferenceServer.triton.drain.{preStopSeconds,exitTimeoutSeconds}	10 / 30	How a replaced Triton pod shuts down: preStopSeconds delays SIGTERM until the pod has left the Service endpoints, exitTimeoutSeconds is how long Triton waits for in-flight requests after SIGTERM. The pod's termination grace period is their sum plus 5s

The Blast strategy skips the canary and the soak; use it only for emergency rollouts.

Errors a retry can clear (an unreachable cluster, a failed ConfigMap or HTTPRoute update, a failed pod-proxy call) do not fail the rollout straight away. The step reports in progress and is retried until its budget, counted from the step's first attempt, is spent: deployment.rollout.modelLoadTimeout for the canary, rolling load and traffic switch, and deployment.rollback.modelLoadTimeout for a rollback. Only then does it fail. A replica that reports a failed load, a model that cannot be resolved and a denied pod proxy fail at once.

Operational notes:

• The model-aware readiness probe runs python3 inside the Triton container. Images without it should set readinessProbe: server.
• Reading load state per replica uses the Kubernetes API server's pod proxy, so the controller's service account needs pods (get/list/watch) and pods/proxy (get/create) in every target cluster.
• Upgrading to this version changes the Triton pod template (readiness probe, drain settings and a spec hash annotation), which restarts existing Triton pods once. Pods replaced by a template change now drain: they stay in the pool for preStopSeconds after leaving the Service endpoints and Triton finishes in-flight requests before exiting, so a rolling restart does not drop requests.
• The drain preStop hook runs sleep in the Triton container; images without it should set drain.preStopSeconds to a value their shell supports or use an image that has it.

Core Concepts

InferenceServer

An InferenceServer represents the infrastructure for serving models. It includes:

• Backend Type: The serving framework (Triton, vLLM, etc.)
• Resource Spec: CPU, memory, GPU requirements
• Replicas: Number of server instances

Deployment

A Deployment represents a model being served on an inference server. It includes:

• Target Server: The InferenceServer to deploy to
• Model Revision: The model version to serve
• Rollout Strategy: How to deploy (progressive or emergency)

Model Config

The model config stores the list of models to be loaded on an inference server. It acts as a decoupling layer between the controllers and the inference server itself so that controllers never need to interact with the serving framework or storage backends directly. The InferenceServer controller owns the model config lifecycle (creation and deletion), while the Deployment controller manages individual model entries (adding and removing models during rollouts and rollbacks). The model-sync sidecar watches this config and reconciles the inference server's state by downloading models from external storage and loading or unloading them via the serving framework's API. Example implementation: Kubernetes ConfigMap.

Each entry carries a rollout phase that tells the sidecar where a model belongs:

Phase	Loaded on	Readiness
canary	Only the replica named in canary_pod	Not required
staged	Every replica	Not required
serving (default)	Every replica	Required by the model-aware readiness probe

The Deployment controller moves an entry through these phases during a rollout and reads the resulting load state back per replica, which is what makes "the model is loaded" mean "every replica serves it" rather than "one replica answered".

Traffic Route

Traffic routes manage traffic routing from the gateway to specific models on the inference server. Example implementation: Gateway API HTTPRoute.

gRPC API Services

The following gRPC services back the serving control plane. All are defined in proto/api/v2/ and accessible via the Michelangelo AI API server.

Service	Proto file	Purpose
InferenceServerService	inference_server_svc.proto	Lifecycle management for InferenceServer resources — provision, health-check, scale, delete
DeploymentService	deployment_svc.proto	Model rollout management — stages, traffic routing, rollback
RevisionService	revision_svc.proto	Manages Revision resources — immutable snapshots of a Deployment configuration
ClusterService	cluster_svc.proto	Manages compute Cluster registrations available to the serving control plane
RayClusterService	ray_cluster_svc.proto	Manages Ray-specific cluster resources provisioned for inference workloads

Each service follows the standard CRUD pattern (Create, Get, List, Update, Delete) and also exposes DeleteXxxCollection for bulk deletion. See the full API reference for complete request/response schemas.

Next Steps

• Full gRPC API Reference: Complete RPC and field reference for these five services
• Run Inference on a Local Sandbox: Try inference in a local development environment
• Integrate with Your Custom Backend: Add support for new serving frameworks
